LG LED – Sports and Stadiums

Where can LED be applied in a Stadium?

• Scoreboards: LBS Series
• Ribbons: LBF Series
• Perimeter Boards: LBB Series
• Entrances: LBS DOOH Series
• Fan Zones: LBE Standard Series
• Hospitality lounges and conference suites: LAS Series
• Club shops: LBE Series

What is required of an LED screen in the Sports vertical?

• High Brightness
• Good viewing angles
• Weatherproof, Outdoor screens
• High image quality
• Flicker free on camera
• Impact protection
• Certified by Governing Bodies
• Robust signal redundancy systems

Scoreboards

Requirements

• Fiber Optics for long cable runs : Distance between control room and screen can be several hundreds of meters
• Brightness control should be possible depending on the natural lighting conditions and time of the day
• Viewing angles that ensure visibility from every seat in the stadium.

Recommended product

Features

• The LBS stadium range offers the perfect solution for building scoreboards.
• The range offers pixel pitches from 6mm to 16mm in a cabinet size that is efficient for building large exterior displays.
• With high brightness as standard, the system can be offered with up to 8,500 nits for use in direct sunlight in areas such as southern Europe where you need a little extra power.
• The 4000hz refresh rate ensures the smoothest image playback and no flicker on camera. 16 bit grey scale processing provides 281 trillion colours for the best accuracy.
• The cabinets are IP65 rated giving high level, all weather protection against even the most extreme conditions.
• Installation flexibility is guaranteed with options for front and rear service access.
• With RoHS and CE certification, we guarantee our green credentials.

Ribbon Boards

Requirements

• Cabinet must be installed directly against the wall
• No access from the rear
• Top of the cabinet will be exposed and within reach of the audience, must have protection and be waterproof in case of spillages
• Can be very long and create a full ring all around the stadium

Recommended product

Features

• The feature set of the LBF range is specifically designed around ribbon application.
• With the same high end 16-bit image processing and colour capabilities of the scoreboard cabinets.
• Quick servicing is important as the expectation is that the screens will always be perfect on match day.
• Front accessible modules speed up the process, which helps when the display can consist of several thousand modules.
• When you’re dealing with a screen that could be several hundred meters long its important that the colour calibration is accurate and easy to manage.
• With the LBF series our calibration is automatically managed, so module changes are simple and quick.

Perimeter Boards

Requirements

• A perimeter board is very close to the players, so there are some special safety requirements to take into consideration
• The LED screen has to be able to take a direct strike from the ball without any visible effect
• There is also the possibility that a player could collide with the screen
• A perimeter screen needs to offer the player protection and they do this with the addition of soft rubber padding and a soft rubber mask on the front
• A perimeter screen creates an unbroken wrap on 3 sides of the pitch, this can cause an issue in an emergency situation as generally the pitch is used as part of the evacuation route, to enable this to happen, perimeter screens have folding sections known as gates, that can be dropped flat and give the supporters a safe route on to the pitch

Recommended product

Features

• Our LBB range is designed to meet these requirements as a fully featured perimeter system.
• Sharing its image processing with the rest of the Stadium range the LBB cabinet offers the best image quality.
• The high refresh rate is even more important as the perimeter is the most likely screen in a stadium to be on TV. We need to have a completely flicker free image even in slow motion replays.
• We have all of the required features needed for this specialist application, including the built in stand, emergency gates and impact protection.

UEFA Specification Perimeter

When a club hosts a UEFA Champions league or Super League match, the stadium must operate under the UEFA guidelines.

Part of these guidelines regulate the type and operation of the perimeter screens.

We have a model that is specifically designed to meet the UEFA requirements.

Available for special order, this 10mm pixel pitch cabinets provides the specialist data redundancy and power management features required. UEFA issue a comprehensive specification that must be met before the system can be used during a UEFA game.

There is more to operating a UEFA perimeter than just buying the correct cabinets.

UEFA has a huge document that stipulates every possible factor that they want controlled.

This includes the operation and installation of the perimeter.

This is because UEFA sell an advertising media package and need to guarantee that the perimeter will be operational and the content will be visible at all times.

Remember, the perimeter is on camera for the whole match.

Making sure that the viewing angles are correct for all of the camera positions is quite tricky. We have to design a layout that is both practical and UEFA compliant.

We have to angle some of the cabinets to ensure that the cameras on the 16 yard lines can always see an image.

Once the perimeter is installed it is tested by the UEFA consultant and the install is then certified as an official UEFA system, the certification is specific to that stadium install and is not transferable.

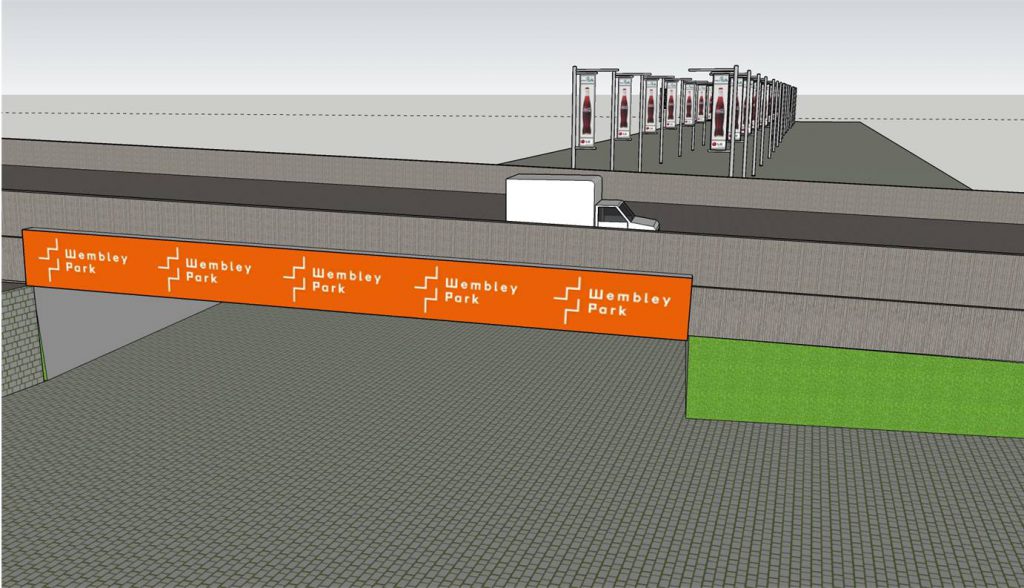

Stadium Approach

Requirements

• Light weight solutions with easy install features are key to this application.
• Products with simple install requirements can help open opportunities as there will be minimal intrusion and modification to existing structure.
• We can also look at custom solutions. Many of our products can be customized to provide none standard cabinet sizes or increased brightness.
• Outdoor capabilities to support different weather conditions.

Recommended product

USP

• Our LBS-V DOOH series provides a high quality solution with great outdoor performance
• High brightness and superior image processing ensure that any branding and advertising are shown at the best possible quality, with accurate colours and no distortion
• The available range of pixel pitches allow us to support installs with shorter viewing distances, but still offer a good value system
• This is achieved by using large module sizes giving good efficiency of manufacture
• The compact light weight design gives easy front and rear service access and reduces the strength requirements for the support frame
• The range has an IP66 weatherproof rating for the front and rear allowing the cabinets to be fully exposed to the weather without the need for any additional protection

Fan Zones

Many clubs try to extend the visiting time for supporters with access to a Fan Zone.

In the fan zone the supporters are entertained before and after the match, there will be music and a variety of food concessions.

These Fan Zones also offer an opportunity of an Outdoor LED display. Pre-match footage and team info will be shown, with game highlights shown afterwards.

Requirements

• Fan zones would usually require a smaller pixel pitch display in order to create a display that is suitable for showing standard TV style content.
• The smaller the screen, the smaller the pixel pitch would need to be.
• For a high quality picture we would look to be approaching Full HD resolution, 1920 x 1080 pixels.

Recommended Product

Features

• Our LBE standard series is a great option here and offers simple fast installation in a reliable weatherproof design.
• With options for front and rear access, the power and data modules are easily removed for servicing.
• It is ideal as a cost effective outdoor solution to provide a low profile wall mounted display.
• The smaller pixel pitches available with this range make it an excellent choice for a providing TV quality  display for medium viewing distances.
• The high brightness output means that high ambient light levels and direct sunlight are not an issue.

Hospitality lounges and conference suites

Requirements

• For a conference space we need a high quality modular technology.
• The needs of a conference room are very similar to that of an auditorium and will place an emphasis on quality, high availability and reliability.
• The best colour processing and image technologies to have great images at a large scale.
• Data redundancy to ensure that there is no loss of image at a critical time.

Recommended Product

Features

• The LAS range brings individual pixel calibration with automatic calibration management in to play, ensuring that the colour is exact and the image is clean and smooth.
• The calibration functions allow the edges of each module to be adjusted, removing any unevenness.
• The LAS range fully support the HD colour standards
• With the logistics and organizational issues around bringing together large audiences, the customer wants to know that the risk of a dead screen has been mitigated.
• The feature set of the LAS range offers both signal and power redundancy as an option. This ensures the high availability of the display, reducing the risk of the screen on working right when its needed.
• The 16:9 cabinets make it very simple to create the conventional aspect ratios and resolutions required by conference centers.
• With options for dual signal paths and dual power supplies, the screen can be protected against failure.
• If the primary signal path fails, the system instantly switches to the backup, maintaining the image.
• A power supply failure causes the cabinet to switch to its backup PSU continuing normal operation.
• The system is factory calibrated for both colour performance and for LED brightness performance.
• The colour setup allows the system to accurately show a variety of standard colour spaces and accurately set the colour temperature.
• The brightness calibration adjusts the relative brightness of the individual red, green and blue diodes to give a smooth and consistent image.

Club Store

Requirements

• In these applications LED is used in 2 primary ways, internally in place of and LCD video wall or as an external facing advertising screen.
• The technology for an outward facing screen is the same as if the screen was installed on the outside of the building. So we also have a crossover into our Digital Out of Home vertical.
• In these applications we are less concerned with having the super high levels of performance and reliability that is needed inside the bowl of the stadium and can use a more cost effective grade of product.
• Space can be a big issue, so a slim cabinet helps, as does it being light weight as it will reduce the space taken up with a support frame.

Recommended Product

Features

• With simple fast installation in a reliable weatherproof design we can create engaging retail displays both in-window and fully outdoors.
• The LBE has options for front and rear access, the power / data modules are easily removed for servicing.
• This reduces the amount of space given over to the screen and maximizes retail space.
