LSCB 6 – Cabling

Cabling

FOLLOWING STEP BY STEP FOR SPECIFIC PRACTICE. YOU WILL KNOW THE DETAIL OPTIONS THROUGH THE PRACTICES.
01 OVERVIEW >02 KEY USP > 03 PREINSTALLATION > 04 CABINET INSTALLATION > 05 CABLING > 06 LDM ATTACHMENT > 07 SYSTEM CONTROLLER > 08 EVALUATION > 09 CERTIFIED PARTNER


Data Connection

The Data is connected using the RJ45 connectors inside the cabinets.

There are 2 connectors inside the cabinet for vertical connections and 1 connector on the side of the cabinet for horizontal connections

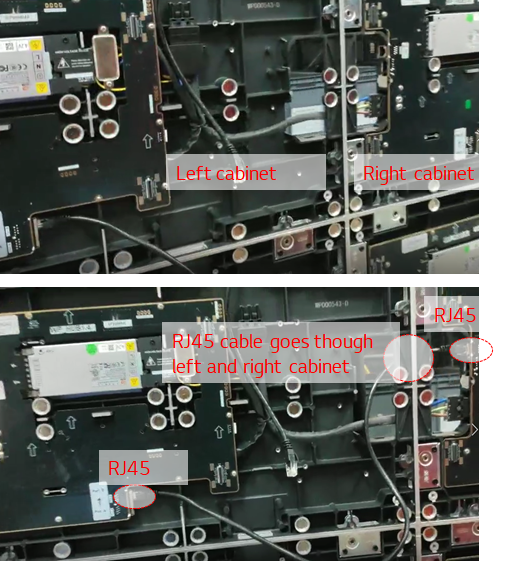

Horizontal Connection

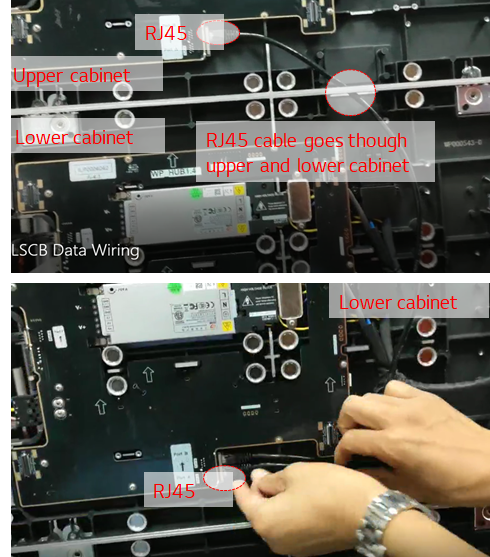

Vertical Connection

Port A & Port B can be  used for IN/OUT

Power Connection

The power is connected using WAGO connectors.

There is an internal cable that can be routed to connect vertically or horizontally between cabinets.

The power start cable can be routed in from the bottom or by removing the plastic covers it can be routed in from the back.

Horizontal Connection

Vertical Connection

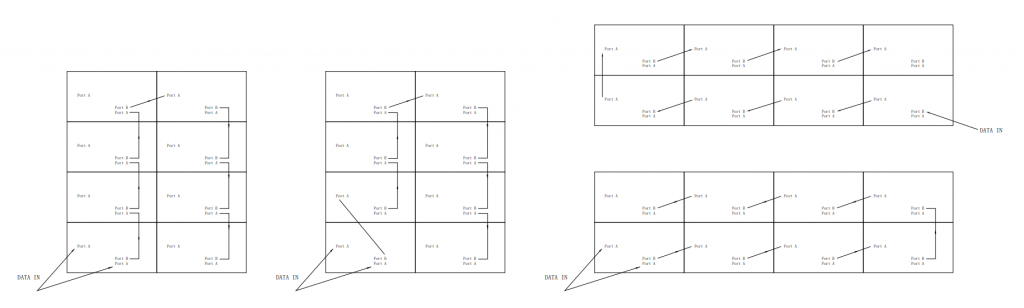

Cabling Variation

Small Screen Installation
Big Screen Installation

Main Power Cable from Source

LSCB Main Power cable

Connector name(type) Connector name(type) Wire(Name/Current spec) Thickness
[sqmm]
Cable length[m]
A B C
 Opened  WAGO 770-203 see attachment   2.5 2.5
It probably is possible if a customer wants to extend it.
Remove from the cable → extend the cable with a customer’s
→Refit the connector

Main Data Cable from System Controller

LSCB Main signal cable
onnector name(type) Connector name(type) Wire(Name/Cat5?) Cable length[m]
A B C
 RJ45 RJ45   CAT5e  10m


Let's move to LDM attachment
