USP#1 : Ultra Slim Depth
USP#2 : Easy Installation & Maintenance
USP#3 : Easy FHD/UHD configuration
USP#4 : 90° Corner Available (Option)
USP#5 : EMC Class B and Fire Protection

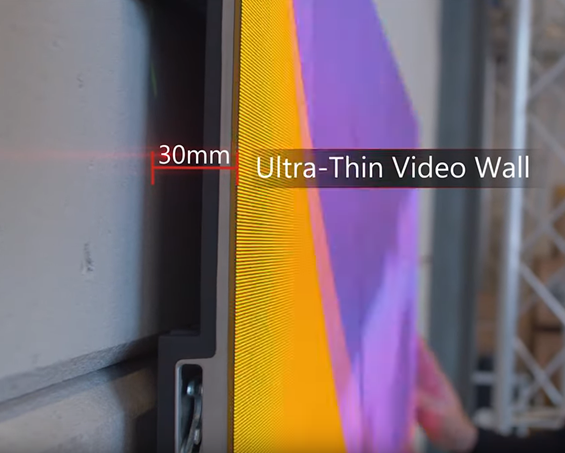

USP#1 : Ultra Slim Depth

LSCB features an edge thickness of 29.5mm, and the combined thickness is only 37.5mm when mounted with the bracket

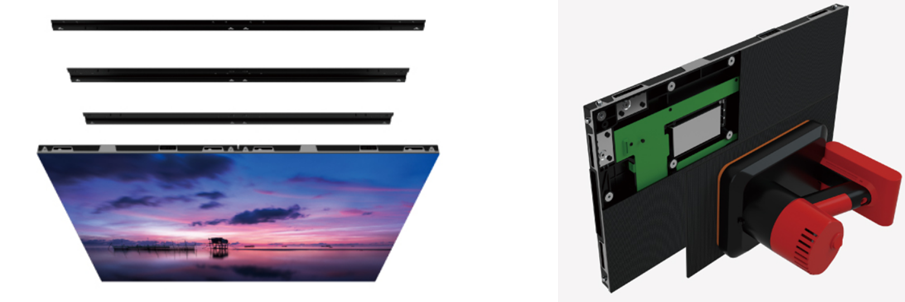

USP#2 : Easy Installation & Maintenance

Wall mount bracket allows quick and easy installation and results in a flat seamless finish.
LED modules front service for easy maintenance.

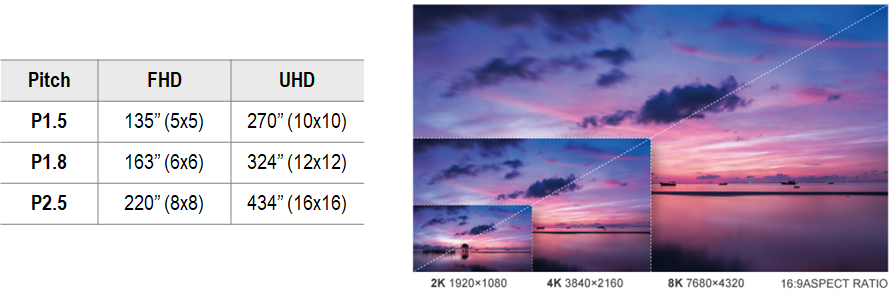

USP#3 : Easy FHD/UHD configuration

Its 16:9 aspect ratio is suitable for delivering FHD & UHD content without additional editing.

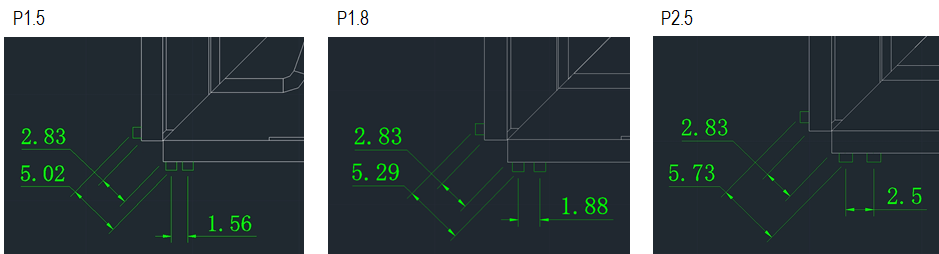

USP#4 : 90° Corner Available (Option)

By applying 90° corner option,
it provides smooth & eye-catching
content without distortion

	Normal Cabinet	Bottom Cabinet
P1.5	LSCB015-GKL LSCB015-GKR	LSCB015-GKE LSCB015-GKT
P1.8	LSCB018-GKL LSCB018-GKR	LSCB018-GKE LSCB018-GKT
P2.5	LSCB025-GKL LSCB025-GKR	LSCB025-GKE LSCB025-GKT

< 90° corner Model Name >
– L / E : Left side 90 degree cutting
– R / T : Right side 90 degree cutting

※ 90 corner model is not in the quotation tool because it’s option model.
Price can be difference compared to basic model, so please ask HQ before making an order.

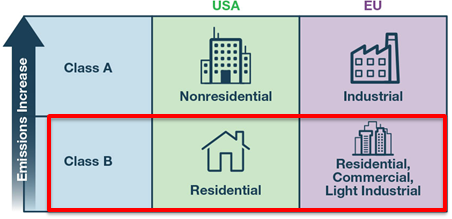

USP#5 : EMC Class B and Fire Protection

EMC Class B and Fire Protection(BS 476 Part7:1997 Class1) certification are under processing

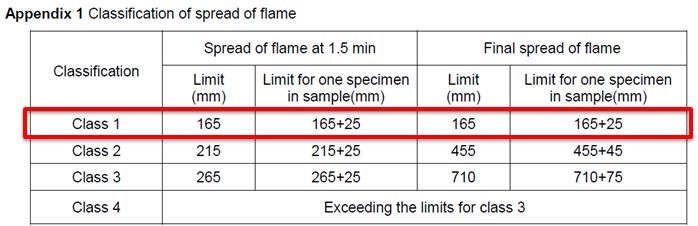

**Fire Protection Certification**
(BS 476 Part7:1997 Class1)

Let's move to Pre-Installation
