Overview

FOLLOWING STEP BY STEP FOR SPECIFIC PRACTICE. YOU WILL KNOW THE DETAIL OPTIONS THROUGH THE PRACTICES.
01 OVERVIEW > 02 Key USP > 03 PREINSTALLATION > 04 CABINET INSTALLATION > 05 CABLING > 06 LDM ATTACHMENT > 07 SYSTEM CONTROLLER > 08 EVALUATION > 09 CERTIFIED PARTNER


Why LSCB

Ultra Slim Indoor LED

1. Ultra Slim Depth
2. Easy Installation & Maintenance
3. Easy FHD/UHD configuration : 16:9 ratio unit case
4. 90° Corner Available (Option)
5 .EMC Class B and Fire Protection

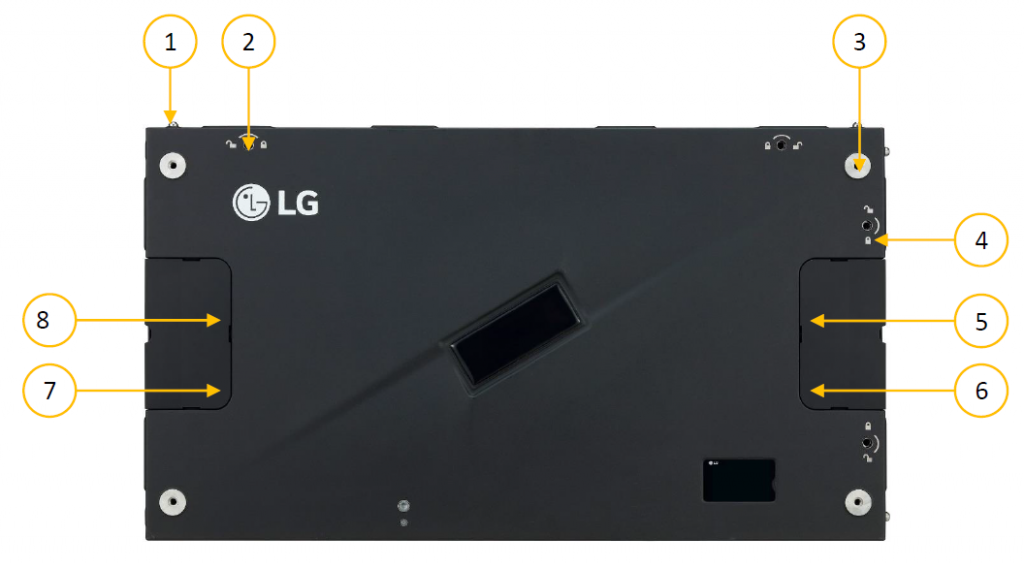

Cabinet Overview

Pos Name Note
1 Position Pin Easy Cabinet Alignment
2 Vertical ‘Rolling’ Lock Mechanical Connection for upper pannel
3 Hanging Pin Hanging point for fixed installation(x4)
4 Horizontal Fast lock Mechanical Connection for lateral panel
5 Data Socket Socket for data input
6 Power Socket Socket for Power supply
7 Power Connection Additional Power Socket
8 Data Connection Socket for Data interlink

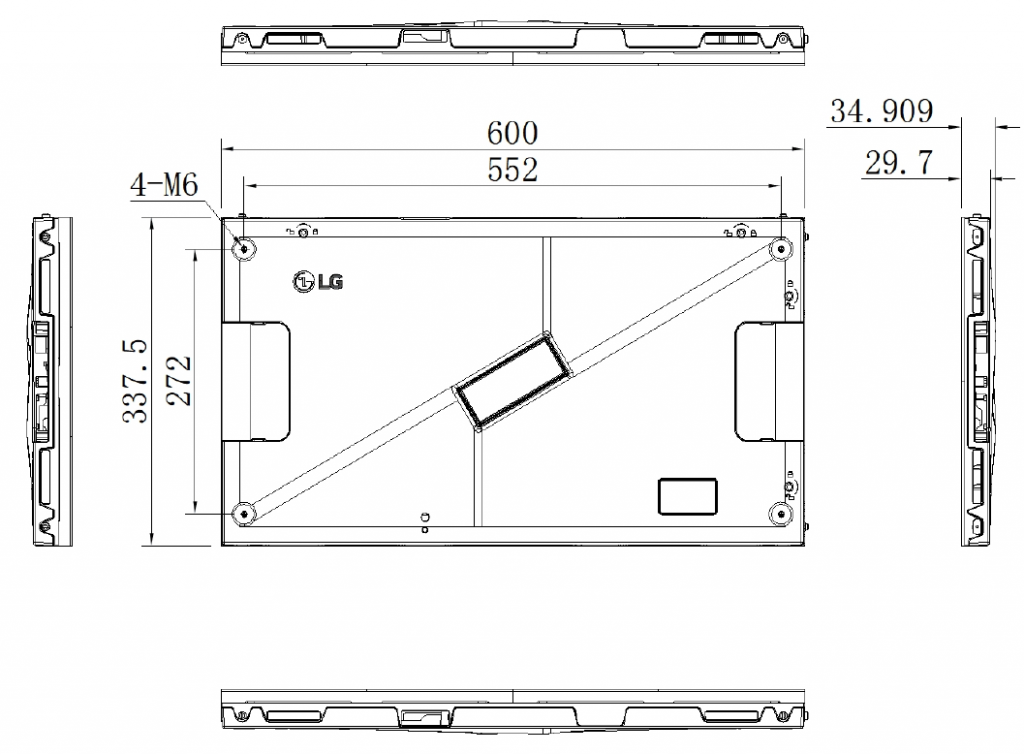

Dimension

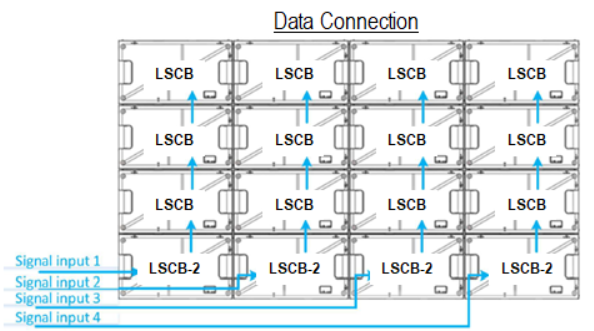

System Controller


Standard Configuration


Wall mount bracket available (option)

  • User can freely configure the size as desired
  • It helps to install LSCB very close to the wall. (total thickness is 40mm↓ from LED screen to the wall)

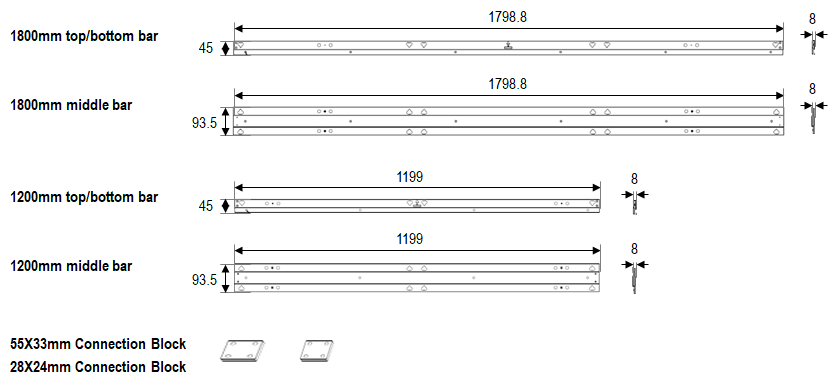

When connect more than 2ea bar horizontally, need ‘Connection block’ that helps leveling

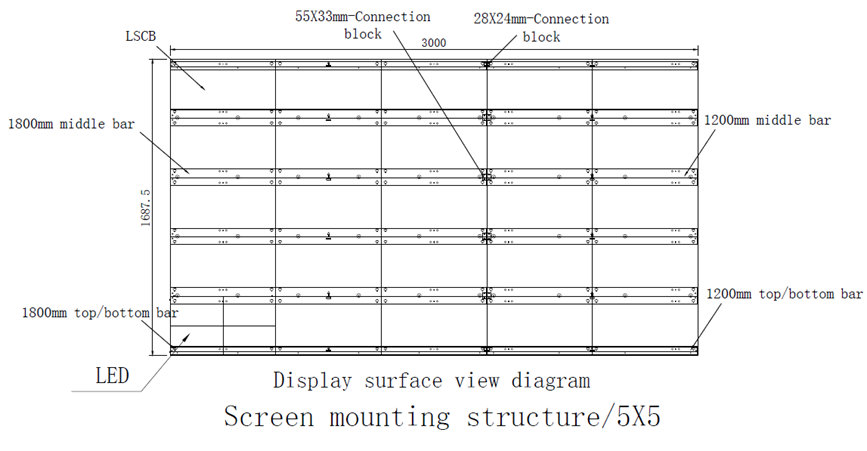

Example of 5×5 wall mounting structure

Let's move to Key USP
